8,000 lbs. Pulling Capacity, Fast Line Speed

Specifications

Rated Line Pull: 8,000 lbs.

Gear Reduction: 34:1

Weight w/o cable: 110 lbs.

Cable Capacity: 140.0 ft.

Hydraulic Pressure: 2,375 PSI

Motor: 4 cu. in.

Features

Fast Line Speed

Recommended cable 3/8″

Meets SAE-J706

Made in the USA

Benefits

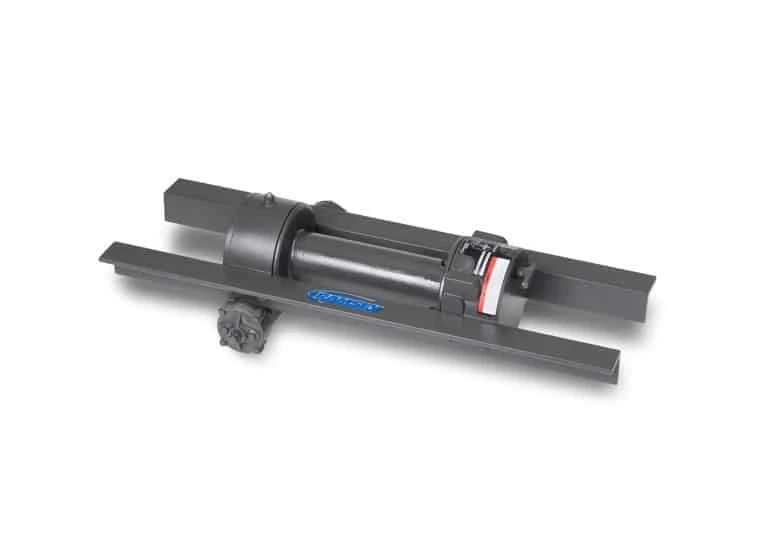

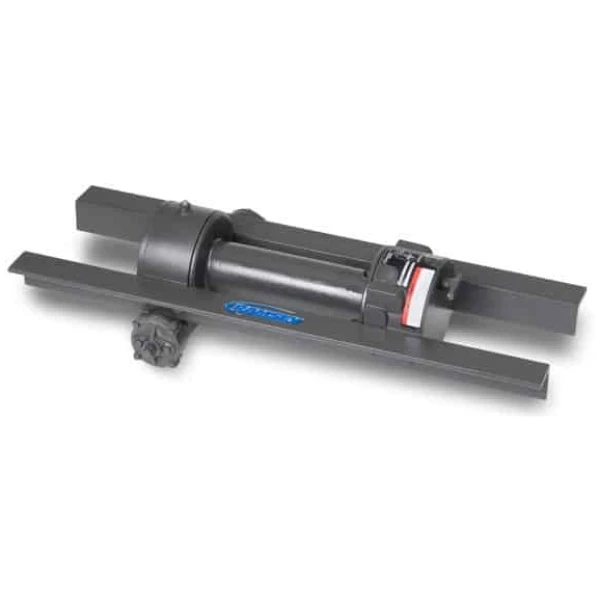

The Ramsey HD-234 is a dependable, rugged, proven hydraulic worm gear winch that offers brute strength and set the industry standard with 8,000 lbs. line pull and 28 Ft/Min line speed.

Downloads

Service/Operating Manuals
