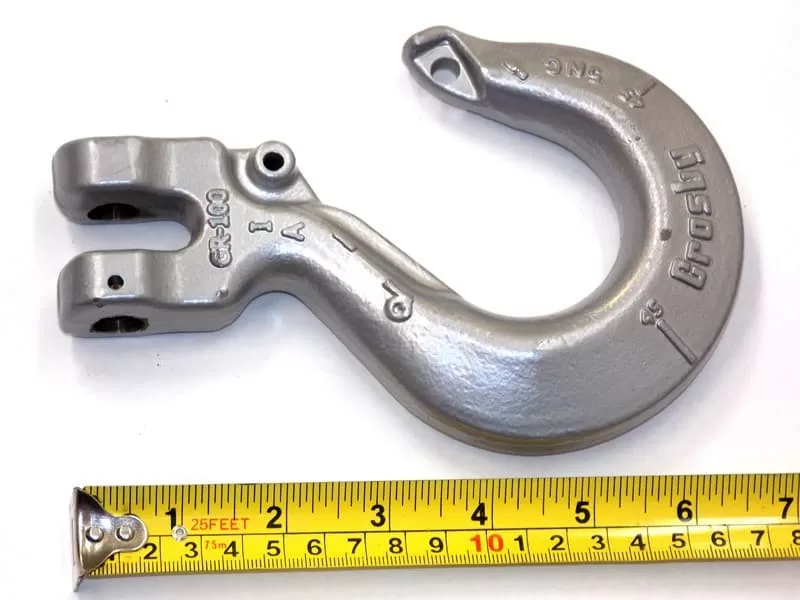

A-1339 8800 lbs. Working Load Limit

Specifications

Chain Size (in.): 3/8

Working Load Limit (lbs.): 8800

Weight Each (lbs.): 2.58

Features

Forged alloy steel – quenched and tempered.

Individually proof tested to 2 1/2 times the working load limit with certification.

Each hook has a product identification code (PIC) for material traceability.

Hoist hooks incorporate two types of strategically placed markings forged into the product which address two (2) QUIC-CHECK features: deformation indicators and angle indicators.

Low profile hook tip.

New integrated latch (S-4320/S-4339> meets the world standard for lifting.

Heavy duty stamped latch interlocks with the hook tip.

High cycle, long life spring.

When secured with the proper cotter pin through the hole in the tip of hook, meets the intent of OSHA rule 1926.1431 (g) and 1926.1501 (g) for personnel lifting.

Suitable for use with Grade 100 and Grade 80 chain.

Fatigue rated at 1 1/2 times the working load limit at 20,000 cycles.

Benefits

Crosby’s ability to meet ISO 9001 makes it clear that the Crosby Group can be depended on to provide the needed product at required performance levels.
