1,500 lbs. AC Electric Winch

Specifications

Part Number: 85330

Rated Line Pull: 1500 lbs. (680kgs)

Features

Motor: 120V AC, 0.8 hp (600W) Permanent Magnet

Controls: Pendant Remote

Gear train: Planetary, Differential Planetary

Gear Ratio: 261:1

Clutch (Freespool): Pull and Turn

Benefits

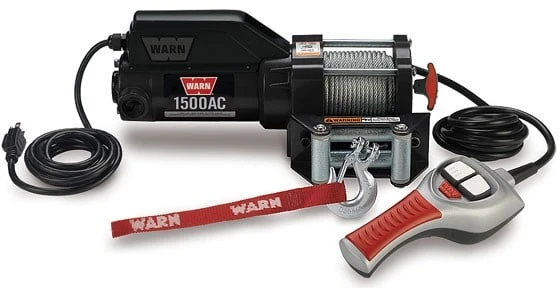

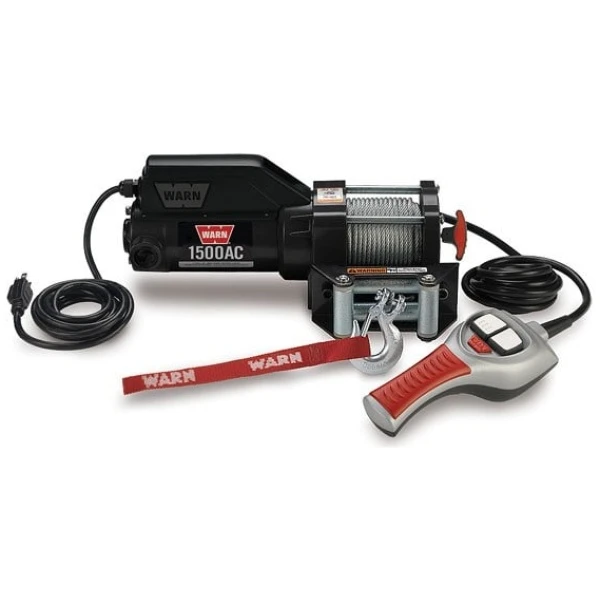

The WARN 1500AC Utility Winch comes equipped with a 10-foot (3m) power cord which allows the 1500AC to be used wherever a standard 120V AC outlet can be found. The winch is equipped with 43-feet of 3/16′ diameter steel rope. And an advanced, sealed pendant remote with 10-foot (3m) lead allows for a great deal of flexibility in use.
