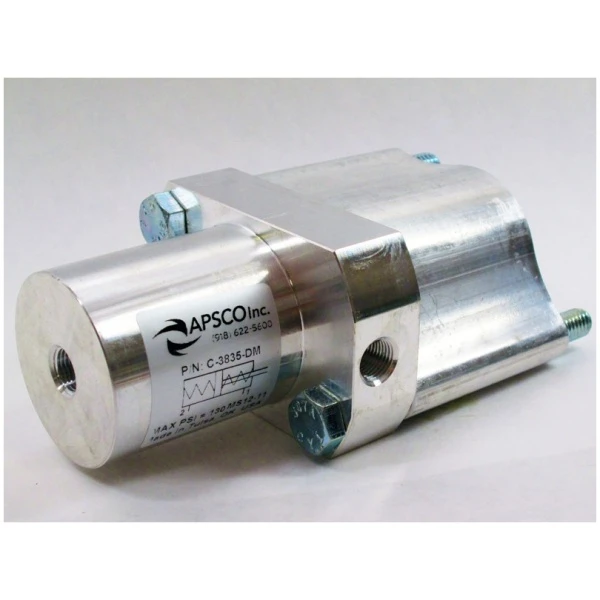

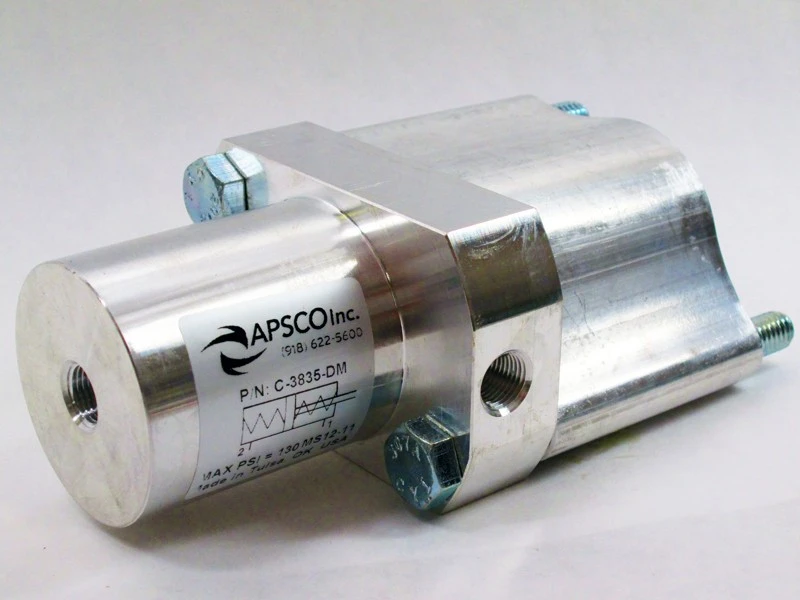

Metering, Hydraulic Valve Actuator

Specifications

Spring Preload: 36.7 lbs.

Min. Extension Force at 100 PSI at Full Stroke = 125 lbs.

Min. Retract Force at 100 PSI at Full Stroke = 65 lbs.

Features

Metering/Feathering Control

Simple 3-step installation – Saves valuable installation labor and cost.

No exposed moving parts – Allows years of service-free operation.

Non-binding technology – provides the very best performance and function.

Compact size = weight savings

Benefits

The APSCO DM series actuators are specifically designed air actuators used to control the opening and closing of a hydraulic valve or operating dump pumps. Metering Air Actuators provide a real, cost-effective alternative to cable controls, which save labor and cost both at installation and by eliminating the service and maintenance issues associated with cable controls. APSCO offers the DM series with or without metering (proportional control).
