100,000lb First Layer Line Pull

Specifications

First Layer Line Pull Capacity: 100,000
Motor: 4.9/2.4 cu. in. 2-speed
3,000 PSI
Wire Rope Diameter: 1 in.

Features

Oil-cooled, fully adjustable automatic worm brake.
Band brake around cable drum helps prevent “bird nesting” of cable when drum clutch is disengaged.
Replaceable clutch jaws are bolted to cable drum.
Free spool clutch with negative draft jaws for positive engagement under load.

Benefits

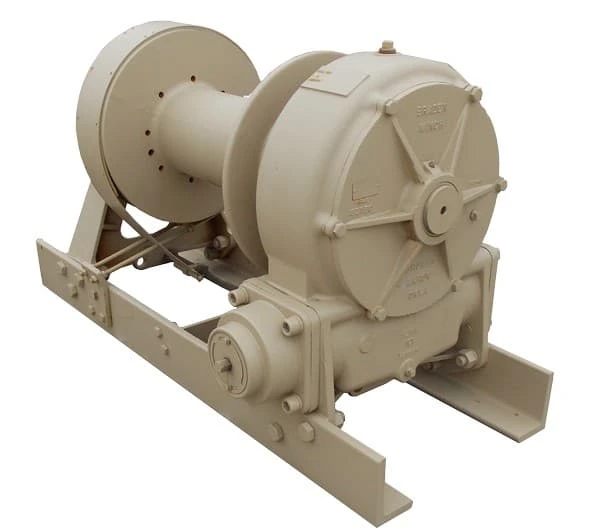

The MS50 worm gear recovery winch is a high-performance product designed to provide many years of service. Braden products have faced and conquered the toughest applications, making them one of the most reliable and highest quality brands in the industry.
