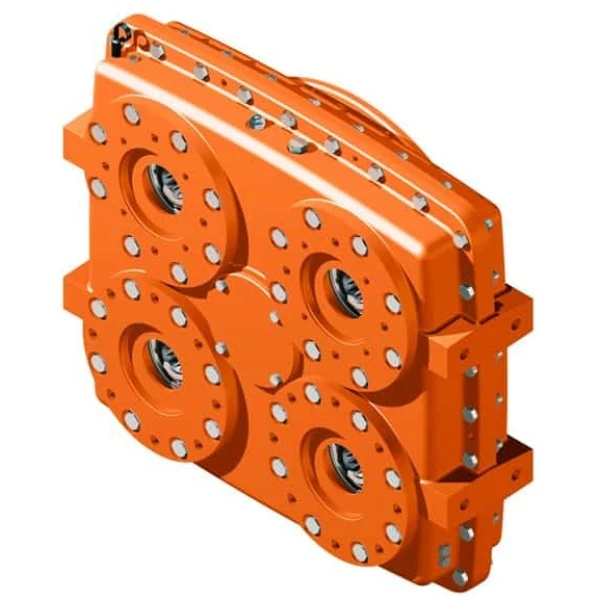

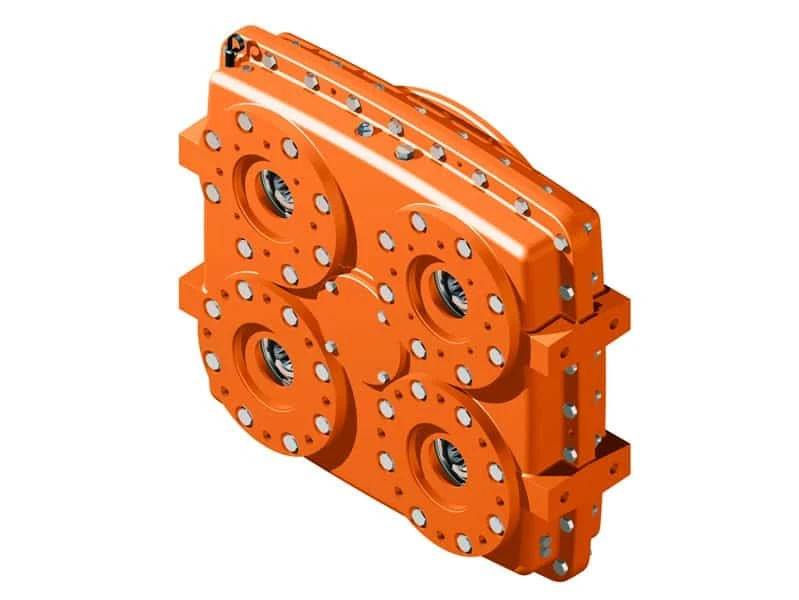

Gear Products D49 Series

Input Torque Rating: 2,100 ft-lbs



Specifications

GPI Part Number prefix: 649

Input Torque Rating: 2,100 ft-lbs/2,847 Nm

Power Rating: 1,000 HP/746 kW

Number of Pump Pads: 4

Weight: 550 lbs/250 kg



Features

Full fillet gearing for optimum strength

Large diameter bearings

Oil level dipstick

Options Include

Shaft Output: spline, keyed, or flange

Gear Ratio: 1.39 reduction to 1.69 increasing

Drive Plate Size: 10, 11 1/2, and 14 or torsional coupling

Engine Adapter: SAE 3, 2, and 1

Clutch: SAE 3, 2, and 1

Pump Flange: SAE A, B, BB, C, CC, D, and E



Benefits

Longer gear life

Longer bearing life

Ease of maintenance

Variety of mounting possibilities
