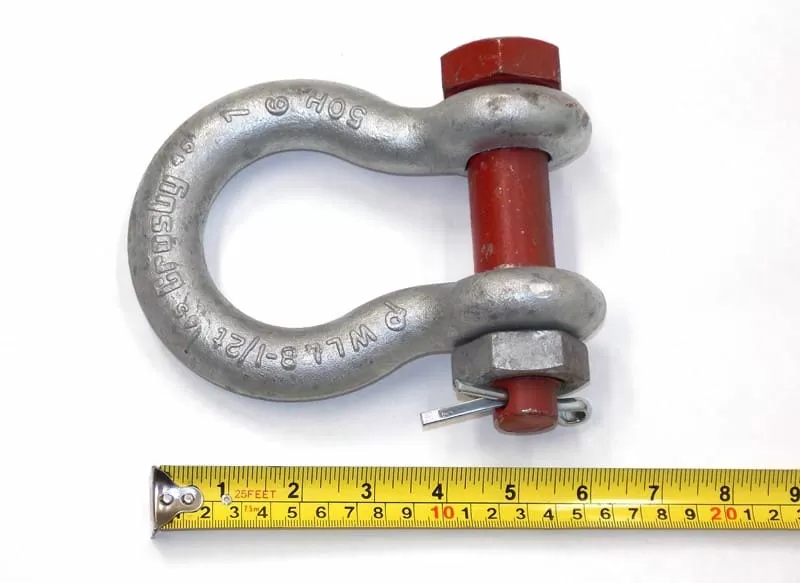

The Crosby Group Crosby Bolt Type Shackle

G-2130 – 8 1/2 Ton Working Load Limit



Specifications

Item Number: 1019551

Nominal Size: 1″

Working Load Limit (tons): 8 1/2

Weight (lbs.): 5.66

Features

Capacities 1/3 thru 150 metric tons, grade 6.

Working Load Limit and grade “6” permanently shown on every shackle.

Forged – quenched and tempered, with alloy pins.

Hot Dip galvanized or self colored.

Fatigue rated (1/3t – 55t)

Shackles 25t and larger are RFID EQUIPPED.

Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F).

Meets or exceeds all requirements of ASME B30.26.

Shackles 85 metric tons and larger are individually proof tested, magnetic particle inspected and provide with serialized pin and bow.

Benefits

Meets the performance requirements of Federal specification RR-C-271F Type IVA, grade A, Class 3, except for those provisions required of the contractor.
