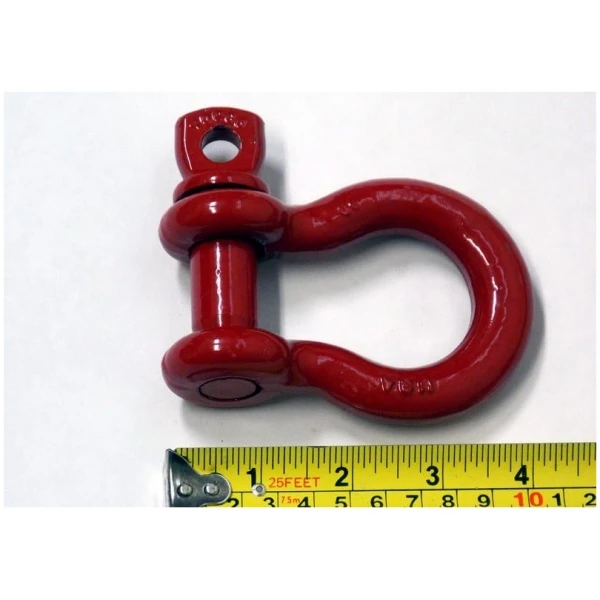

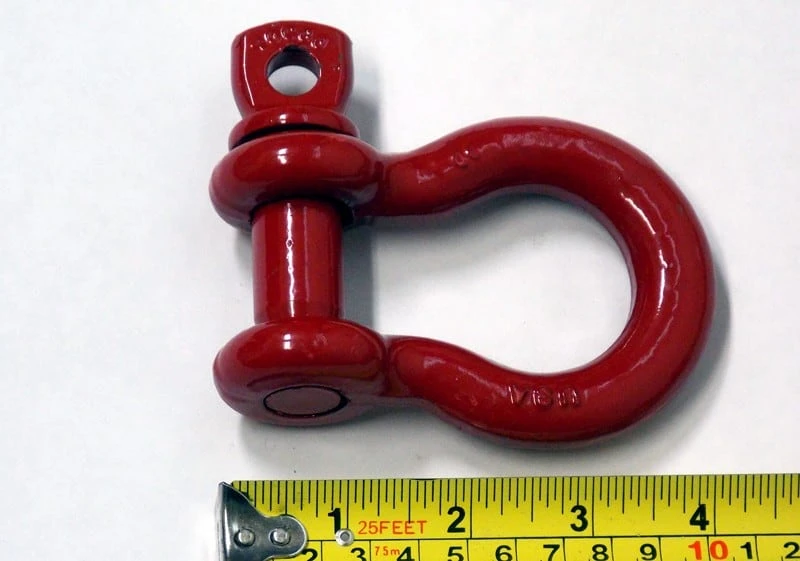

The Crosby Group Crosby Screw Pin Shackle

S-209 – 3 1/4 Ton Working Load Limit



Specifications

Item Number: 1018482

Nominal Size: 5/8″

Working Load Limit (tons): 3 1/4

Weight: 1.37

Features

Capacities 1/3 thru 55 metric tons, grade 6

Forged – Quenched and tempered, with alloy pins

Hot Dip galvanized or self colored.

Fatigue rated

Shackles 25t and larger are RFID EQUIPPED.

Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F).

Meets or exceeds all requirements of ASME B30.26.

Benefits

Meets the performance requirements of Federal specification RR-C-271F Type IVA, grade A, Class 3, except for those provisions required of the contractor.
