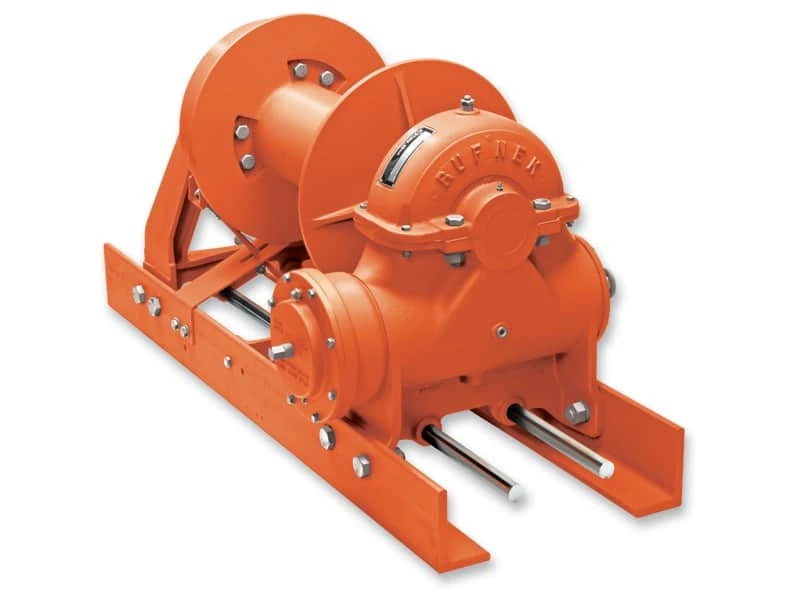

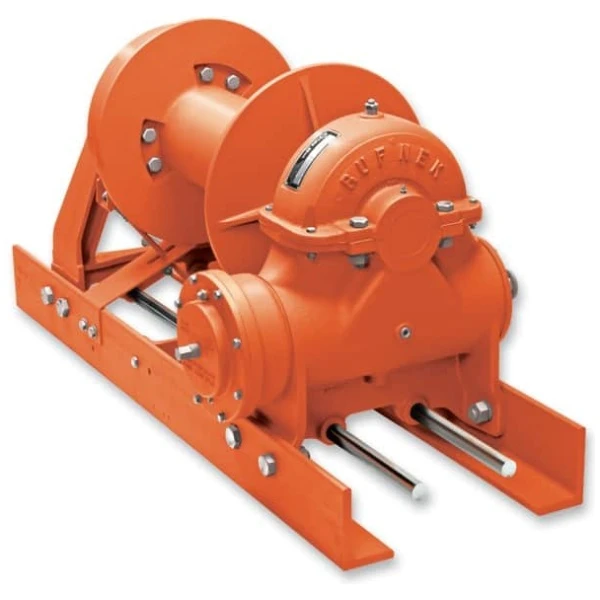

45,000 lbs. First Layer Line Pull

Specifications

Pulling Capacity: 45,000 lbs/20,412 kg

Mechanical Weight: 1,076 lbs/488 kg

Hydraulic Weight: 1,138 lbs/516 kg

Features

Mechanical input or integral hydraulic motor and air control packages for clutch and band brake operation

Clutch position indicator

Sliding clutch with reverse draft

Adjustable oil brake with automatic engagement when power is reversed

Air applied drum brake

Benefits

Offers optimal flexibility in selecting appropriate drives for applications

Provides safe, visual means of ensuring positive clutch engagement

Assures complete and even engagement under load

Enhances brake life and improves load management

Prevents bird-nesting of cable during free spool operation
