Part Numbers: 28500 12V
Rated Line Pull: 9,000 lbs.
Motor: Series Wound: 12V 4.6 hp, 24V 2.5hp
Remote Control: Remote Switch, 12′ lead
Gear Train: 3-stage Planetary
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic mechanical cone
Wight: 78 lbs.
Finish: Argent Gray Powder Coat
Low-profile design and separate control box allows for a wide range of mounting options
Exclusive brake design provides superior control while winching
Durable 3-stage planetary geartrain for smooth, reliable, operation
Series-wound, high-speed motor provides fast line speed and strong pulls
Chip-resistant, powder-coated finish
Remote control with 12′ (3.7m) lead.
Durable 5/16″ (8mm) diameter galvanized steel wire rope.

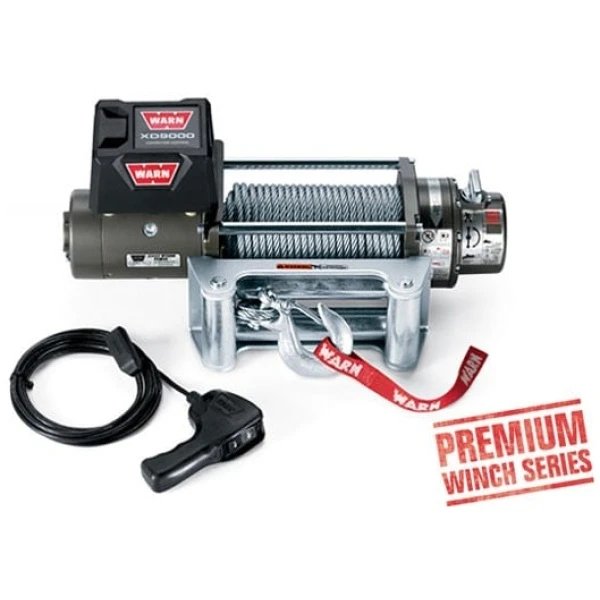

Long-time best seller. A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100′ of 5/16″ wire rope. Backed by the Warn Limited Lifetime Warranty.
Service/Operating ManualsMid-Frame Winch Operators Manual
