Part Number: 92810
Rated line pull: 10,000 lbs. (4536 kg) single-line
Motor: series wound, 12V DC, 24V DC
Electrical controls: Contactor
Remote Control: Remote switch, 12′ (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 216:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.15″/9.0″ (80mm/229mm)
Weight (kit shipping): 98 lbs. (44 kg)
Rope: 3/8″ x 80′ (9.52mm x 24.38m) steel
10,000 lb. (4536 kg) single-line pulling capacity.
Includes 80′ of 3/8″ galvanized steel wire rope
Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)
A new-design planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.

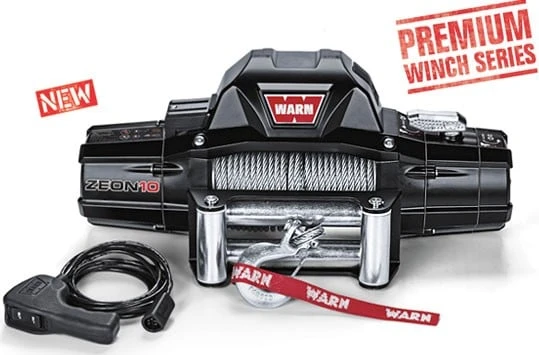

Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable, and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity, and, well, you’ve got a workhorse unit you can trust for years to come.
Service/Operating ManualsZEON 10 Service Instructions
