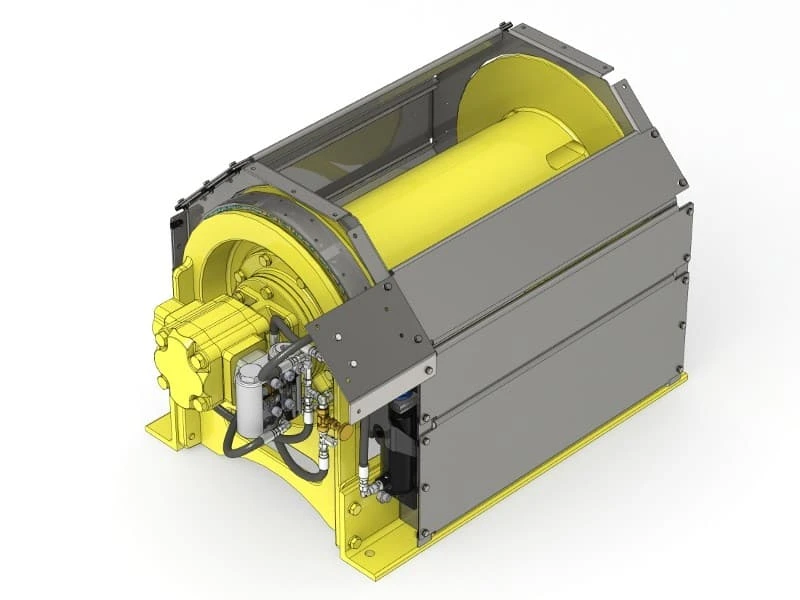

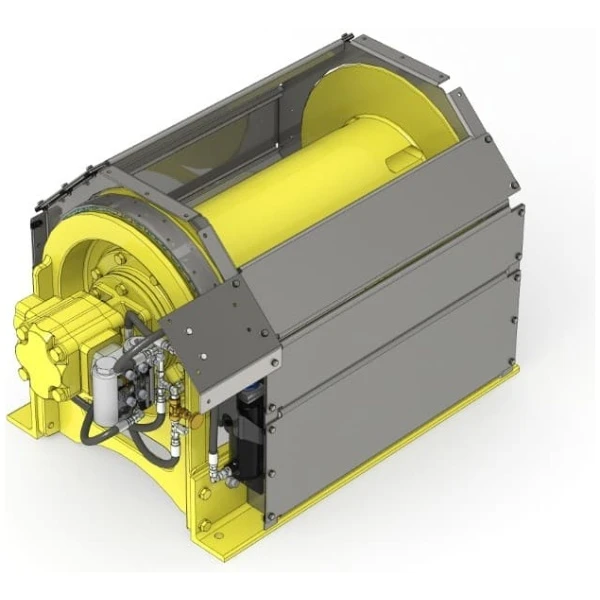

Braden BH3A

15,000lb First Layer Line Pull



Specifications

15,000 lbs. First Layer Line Pull for Utility Lifting
4,500 lbs. First Layer Line Personal Lifting Rating
Internal gearing, brake valve, and motor of the proven Braden PD15B
Standard spring-applied, hydraulically released external third brake acting directly on the drum
Standard guard and pressure roller for protection and smooth spooling
Internal spring-applied, hydraulically released multi-disc brake
Exclusively offered by Winches Inc



Features

Designed in accordance with API 2C



Benefits

In a combined effort to bring the offshore oil industry cost-effective, innovative solutions to improve efficiency and maximize safety, Winches Inc and BRADEN introduced the BH3A hydraulic planetary utility inch designed in accordance with API requirements for lifting personnel. The BH3A combines the proven BRADEN PD15B gear train and braking system with the features of a pneumatic hoist. The BH3A features a 4-way braking system, the patented BRADEN brake valve, the one-direction over-running clutch, and the internal, spring-applied, hydraulically released multi-disc brake, and an external, spring-applied, hydraulically released band brake acting directly on the drum.



Downloads

Sales Literature
