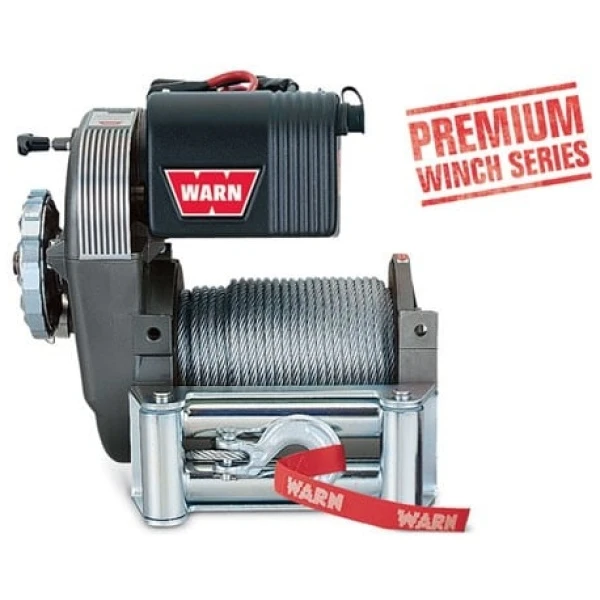

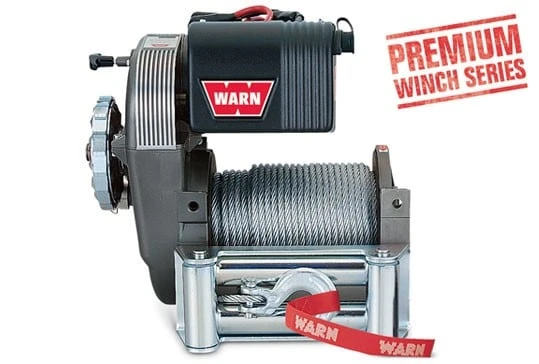

WARN M8274-50

Fastest Line Speed, Legendary Performance, 8,000 lbs. Pull



Specifications

Part Number: 38631

Rated Line Pull: 8,000 lbs. single line.

Motor: Series Wound, 12V 4.6 hp/3.43kw, 24V 2.5 hp/3.43kw

Remote Control: Remote Switch, 12′ lead

Gear Train: Spur Gear

Clutch (free spooling): Sliding Motor Pinion Gear

Brake: Automatic disc type

Weight: 110 lbs.

Finish: Powder coat with clear coat



Features

Rugged spur-gear drive train and unique upright design

Automatic disc braking system delivers smooth operation with superior heat dissipation.

Roller fairlead, remote control, free spool clutch, and battery cables are included.



Benefits

Loved by off-roaders who compete, it’s our fastest winch. No-load retrieval speed for the M8274-50 is 79.3 feet per minute, and that’s not all. At 150 ft. of 5/16″ cable, it also has a very long line capacity. Its unique spur gear drivetrain and upright design are totally rugged. Its braking system delivers smooth operation with superior heat dissipation. Roller fairlead, remote control on 12-ft. lead, free spool clutch, and battery cables are included.



Downloads

Service/Operating Manuals
